LiteMat Spectrum Specifications
LiteMat Spectrum 1
Mechanical Specifications
Electrical Specifications
Height
11.5 inches (292 mm)
Voltage (VDC)
48
Width
21 inches (533 mm)
Current (Amps)
1.04
Depth
0.9 inches (23 mm)
Power (Watts)
50
Weight
2.6 pounds (23 kg)
Total LED Quantity
1296
Photometric Specifications
CRI
95+
TLCI
95+
Lumens
3476 (Tungsten), 4180 (Daylite)
CCT (Kelvin)
2600 (Tungsten), 6000 (Daylite)
Foot Candles (Tungsten)
264@24 inches, 118@36 inches, 66@48 inches, 42@60 inches, 29@72 inches, 22@84 inches, 17@96 inches, 13@108 inches
Foot Candles (Daylite)
322@24 inches, 143@36 inches, 81@48 inches, 52@60 inches, 36@72 inches, 26@84 inches, 20@96 inches, 16@108 inches
Lux (Tungsten)
2846@61 cm, 1265@91 cm, 711@122 cm, 455@152 cm, 316@183 cm, 232@213 cm, 178@244 cm, 141@274 cm
Lux (Daylite)
3470@61 cm, 1542@91 cm, 868@122 cm, 564@152 cm, 391@183 cm, 283@213 cm, 217@244 cm, 171@274 cm
Beam Spread
Beam Size HxW (Inches)
69 x 80@24 inches, 103 x120@36 inches, 137 x 160@48 inches, 171 x 200@60 inches, 206 x 240@72 inches, 240 x 280@84 inches, 274 x 320@96 inches, 308 x 360@108 inches
Beam Size HxW (cm)
175 x 203@61 cm, 261 x 305@91 cm, 348 x 406@122 cm 434 x 508@152 cm, 523 x 610@183 cm, 610 x 711@213 cm, 696 x 813@244 cm, 782 x 914@274 cm
Tungsten

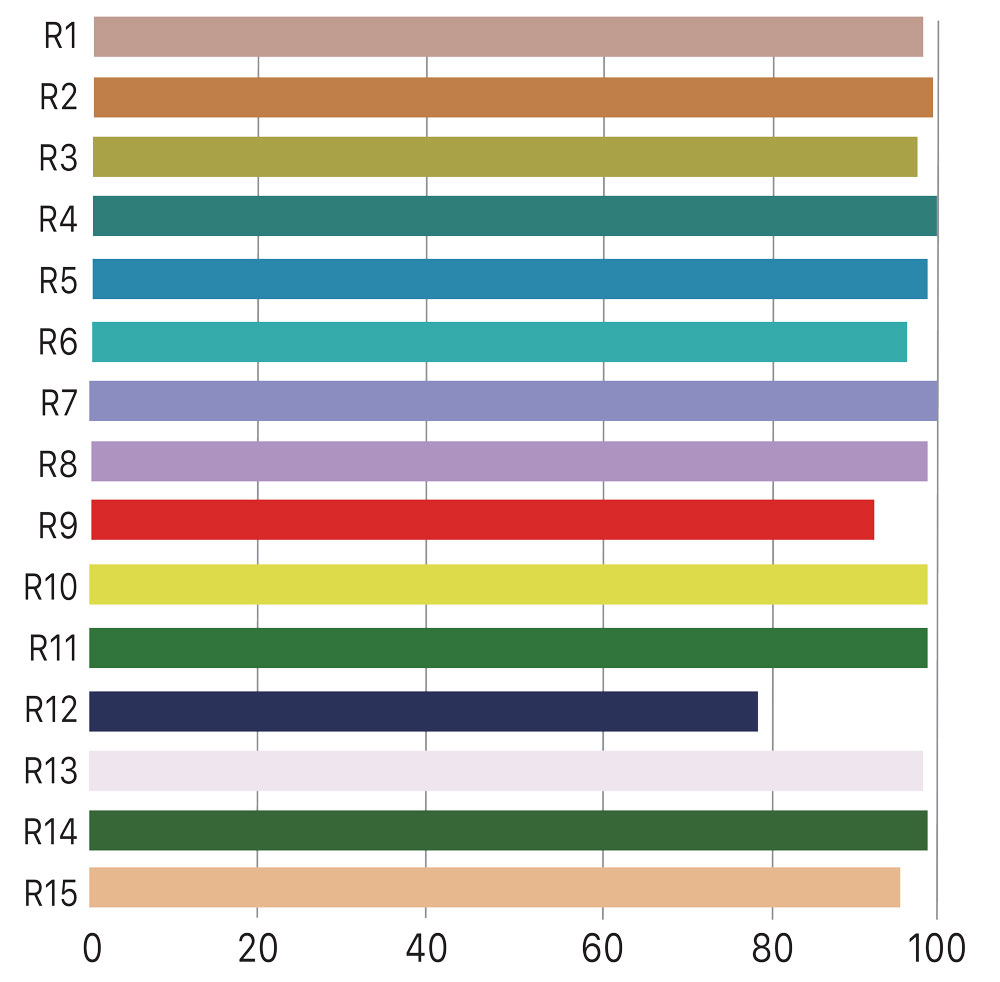

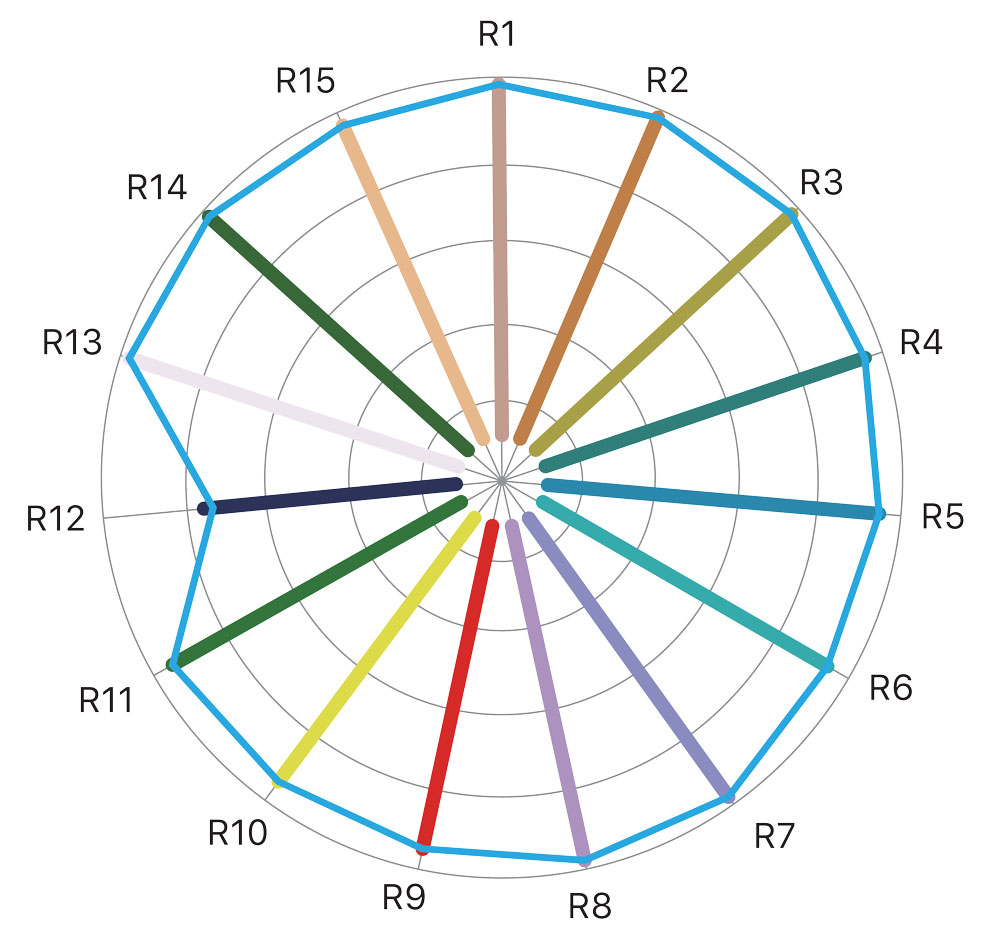

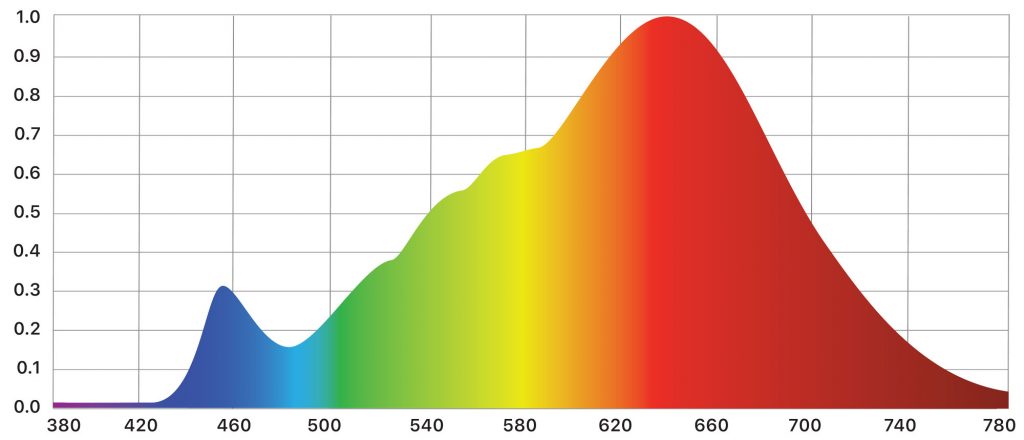

Color Rendering Index and Sprectral Graph
Daylite

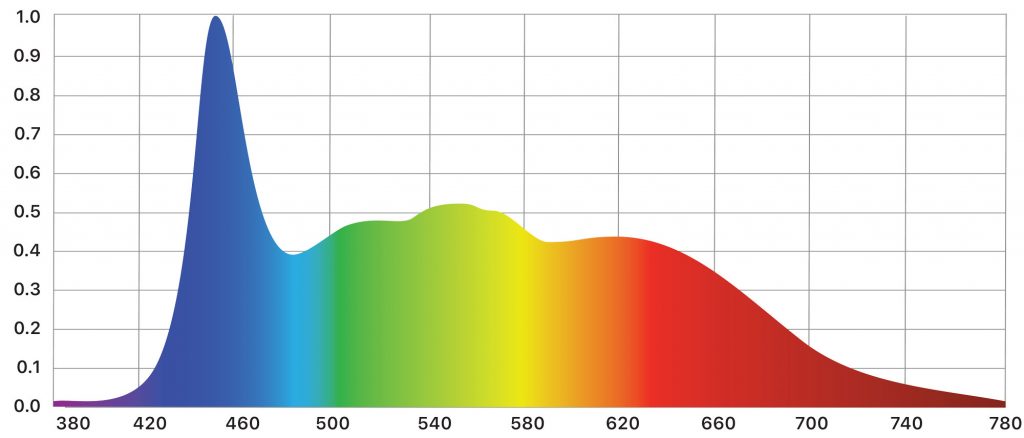

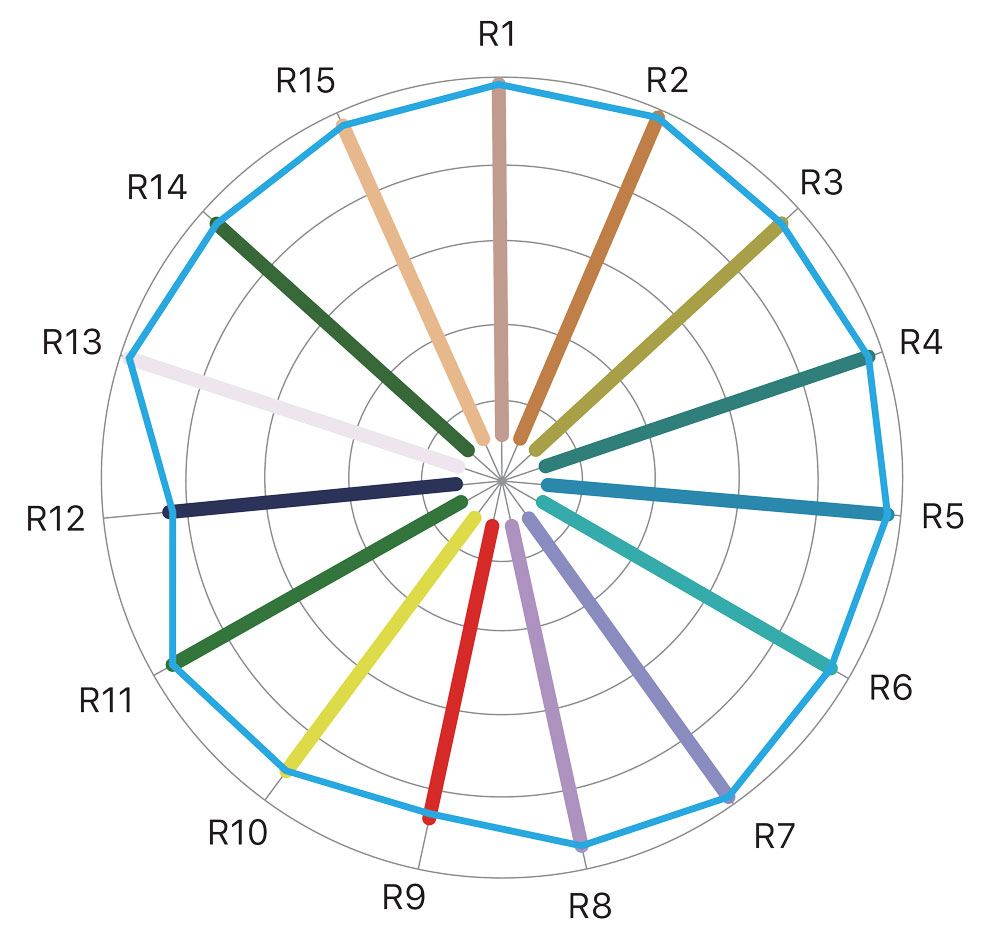

Color Rendering Index and Sprectral Graph
LiteMat Spectrum 2
Mechanical Specifications
Height
11.5 inches (292 mm)
Width
21 inches (533 mm)
Depth
0.9 inches (23 mm)
Weight
2.6 pounds (23 kg)
Electrical Specifications
Voltage (VDC)
48
Current (Amps)
1.04
Power (Watts)
50
Total LED Quantity
1296
Photometric Specifications
CRI
95+
TLCI
95+
Lumens
3476 (Tungsten), 4180 (Daylite)
CCT (Kelvin)
2600 (Tungsten), 6000 (Daylite)
Foot Candles (Tungsten)
264@24 inches, 118@36 inches, 66@48 inches, 42@60 inches, 29@72 inches, 22@84 inches, 17@96 inches, 13@108 inches
Foot Candles (Daylite)
322@24 inches, 143@36 inches, 81@48 inches, 52@60 inches, 36@72 inches, 26@84 inches, 20@96 inches, 16@108 inches
Lux (Tungsten)
2846@61 cm, 1265@91 cm, 711@122 cm, 455@152 cm, 316@183 cm, 232@213 cm, 178@244 cm, 141@274 cm
Lux (Daylite)
3470@61 cm, 1542@91 cm, 868@122 cm, 564@152 cm, 391@183 cm, 283@213 cm, 217@244 cm, 171@274 cm
Beam Spread
Beam Size HxW (Inches)
69 x 80@24 inches, 103 x120@36 inches, 137 x 160@48 inches, 171 x 200@60 inches, 206 x 240@72 inches, 240 x 280@84 inches, 274 x 320@96 inches, 308 x 360@108 inches
Beam Size HxW (cm)
175 x 203@61 cm, 261 x 305@91 cm, 348 x 406@122 cm 434 x 508@152 cm, 523 x 610@183 cm, 610 x 711@213 cm, 696 x 813@244 cm, 782 x 914@274 cm
Tungsten
Color Rendering Index and Sprectral Graph
Daylite
Color Rendering Index and Sprectral Graph
LiteMat Spectrum 2L
Mechanical Specifications
Height
11.5 inches (292 mm)
Width
21 inches (533 mm)
Depth
0.9 inches (23 mm)
Weight
2.6 pounds (23 kg)
Electrical Specifications
Voltage (VDC)
48
Current (Amps)
1.04
Power (Watts)
50
Total LED Quantity
1296
Photometric Specifications
CRI
95+
TLCI
95+
Lumens
3476 (Tungsten), 4180 (Daylite)
CCT (Kelvin)
2600 (Tungsten), 6000 (Daylite)
Foot Candles (Tungsten)
264@24 inches, 118@36 inches, 66@48 inches, 42@60 inches, 29@72 inches, 22@84 inches, 17@96 inches, 13@108 inches
Foot Candles (Daylite)
322@24 inches, 143@36 inches, 81@48 inches, 52@60 inches, 36@72 inches, 26@84 inches, 20@96 inches, 16@108 inches
Lux (Tungsten)
2846@61 cm, 1265@91 cm, 711@122 cm, 455@152 cm, 316@183 cm, 232@213 cm, 178@244 cm, 141@274 cm
Lux (Daylite)
3470@61 cm, 1542@91 cm, 868@122 cm, 564@152 cm, 391@183 cm, 283@213 cm, 217@244 cm, 171@274 cm
Beam Spread
Beam Size HxW (Inches)
69 x 80@24 inches, 103 x120@36 inches, 137 x 160@48 inches, 171 x 200@60 inches, 206 x 240@72 inches, 240 x 280@84 inches, 274 x 320@96 inches, 308 x 360@108 inches
Beam Size HxW (cm)
175 x 203@61 cm, 261 x 305@91 cm, 348 x 406@122 cm 434 x 508@152 cm, 523 x 610@183 cm, 610 x 711@213 cm, 696 x 813@244 cm, 782 x 914@274 cm
Tungsten
Color Rendering Index and Sprectral Graph
Daylite
Color Rendering Index and Sprectral Graph
LiteMat Spectrum 3
Mechanical Specifications
Height
11.5 inches (292 mm)
Width
21 inches (533 mm)
Depth
0.9 inches (23 mm)
Weight
2.6 pounds (23 kg)
Electrical Specifications
Voltage (VDC)
48
Current (Amps)
1.04
Power (Watts)
50
Total LED Quantity
1296
Photometric Specifications
CRI
95+
TLCI
95+
Lumens
3476 (Tungsten), 4180 (Daylite)
CCT (Kelvin)
2600 (Tungsten), 6000 (Daylite)
Foot Candles (Tungsten)
264@24 inches, 118@36 inches, 66@48 inches, 42@60 inches, 29@72 inches, 22@84 inches, 17@96 inches, 13@108 inches
Foot Candles (Daylite)
322@24 inches, 143@36 inches, 81@48 inches, 52@60 inches, 36@72 inches, 26@84 inches, 20@96 inches, 16@108 inches
Lux (Tungsten)
2846@61 cm, 1265@91 cm, 711@122 cm, 455@152 cm, 316@183 cm, 232@213 cm, 178@244 cm, 141@274 cm
Lux (Daylite)
3470@61 cm, 1542@91 cm, 868@122 cm, 564@152 cm, 391@183 cm, 283@213 cm, 217@244 cm, 171@274 cm
Beam Spread
Beam Size HxW (Inches)
69 x 80@24 inches, 103 x120@36 inches, 137 x 160@48 inches, 171 x 200@60 inches, 206 x 240@72 inches, 240 x 280@84 inches, 274 x 320@96 inches, 308 x 360@108 inches
Beam Size HxW (cm)
175 x 203@61 cm, 261 x 305@91 cm, 348 x 406@122 cm 434 x 508@152 cm, 523 x 610@183 cm, 610 x 711@213 cm, 696 x 813@244 cm, 782 x 914@274 cm
Tungsten
Color Rendering Index and Sprectral Graph
Daylite
Color Rendering Index and Sprectral Graph
LiteMat Spectrum 4
Mechanical Specifications
Height
11.5 inches (292 mm)
Width
21 inches (533 mm)
Depth
0.9 inches (23 mm)
Weight
2.6 pounds (23 kg)
Electrical Specifications
Voltage (VDC)
48
Current (Amps)
1.04
Power (Watts)
50
Total LED Quantity
1296
Photometric Specifications
CRI
95+
TLCI
95+
Lumens
3476 (Tungsten), 4180 (Daylite)
CCT (Kelvin)
2600 (Tungsten), 6000 (Daylite)
Foot Candles (Tungsten)
264@24 inches, 118@36 inches, 66@48 inches, 42@60 inches, 29@72 inches, 22@84 inches, 17@96 inches, 13@108 inches
Foot Candles (Daylite)
322@24 inches, 143@36 inches, 81@48 inches, 52@60 inches, 36@72 inches, 26@84 inches, 20@96 inches, 16@108 inches
Lux (Tungsten)
2846@61 cm, 1265@91 cm, 711@122 cm, 455@152 cm, 316@183 cm, 232@213 cm, 178@244 cm, 141@274 cm
Lux (Daylite)
3470@61 cm, 1542@91 cm, 868@122 cm, 564@152 cm, 391@183 cm, 283@213 cm, 217@244 cm, 171@274 cm
Beam Spread
Beam Size HxW (Inches)
69 x 80@24 inches, 103 x120@36 inches, 137 x 160@48 inches, 171 x 200@60 inches, 206 x 240@72 inches, 240 x 280@84 inches, 274 x 320@96 inches, 308 x 360@108 inches
Beam Size HxW (cm)
175 x 203@61 cm, 261 x 305@91 cm, 348 x 406@122 cm 434 x 508@152 cm, 523 x 610@183 cm, 610 x 711@213 cm, 696 x 813@244 cm, 782 x 914@274 cm
Tungsten
Color Rendering Index and Sprectral Graph
Daylite
Color Rendering Index and Sprectral Graph
