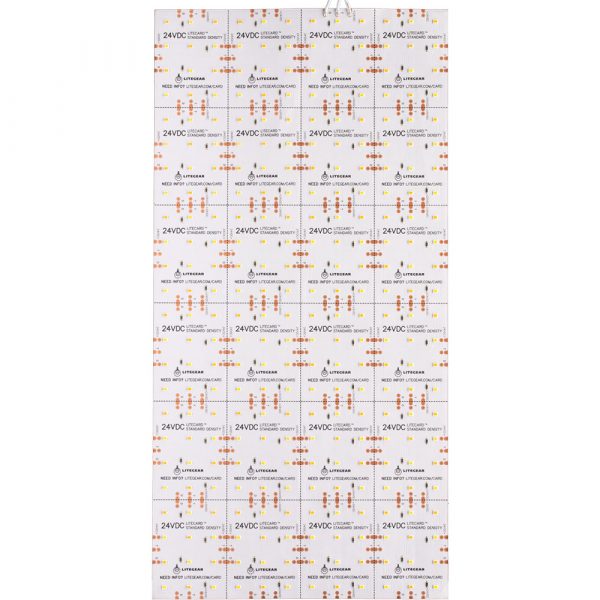

LiteCard, Cinema Series, Standard Density, Hybrid, 24V

LiteCard features a flexible array of emitters can be cut to your desired size and powered using any Hybrid LiteDimmer. Individual pieces can be cut out and will continue to still operate. The pieces can be soldered back together to make the LiteCard whole again. Cinema Series color space (matches LiteMat and LiteTile). Sections can be tiled together. 50W (25W Tungsten and 25W Daylite).

Power: 50W
Voltage Input: 24V DC nominal (20-25.5V DC constant voltage)
Current: 2.08A
CCT: Hybrid 2600K (+ / – 100K), 6000K (+/–100K)
CRI: 95+ (Daylite), 95+ (Tungsten)
TLCI: 97 (Daylite), 96 (Tungsten)
Beam Angle: 120°
Lumens (lm) Whites: TBD (Tungsten), TBD (Daylite)
Weight: 0.31 lb. (.14 kg)
PCB Dimensions: 240 mm (9.45 in.) x 480 mm (18.90 in.)
Card Overall Thickness: 2.2 mm (0.087 in.)
Segment Dimensions: 60 mm (.79 in.) x 80 mm (3.14 in.)
Segments per Card: 24
Total LED Quantity: 288
LEDs per Cut Segment: 12
LED Spacing: 20 mm (0.79 in.)
Dimming Range: 0-1 100%
Operating Temperature: -20°C to +50°C (68°F to +122°F)
Connector: Bare Wire
Mounting: Adhesive backing
LED Lifetime: 50,000 Hrs
IP Rating: 20
Certifications: UL Listed (Canada/US), CE Compliant (Europe)

LiteCard Cinema Hybrid Standard Density Data Sheet
