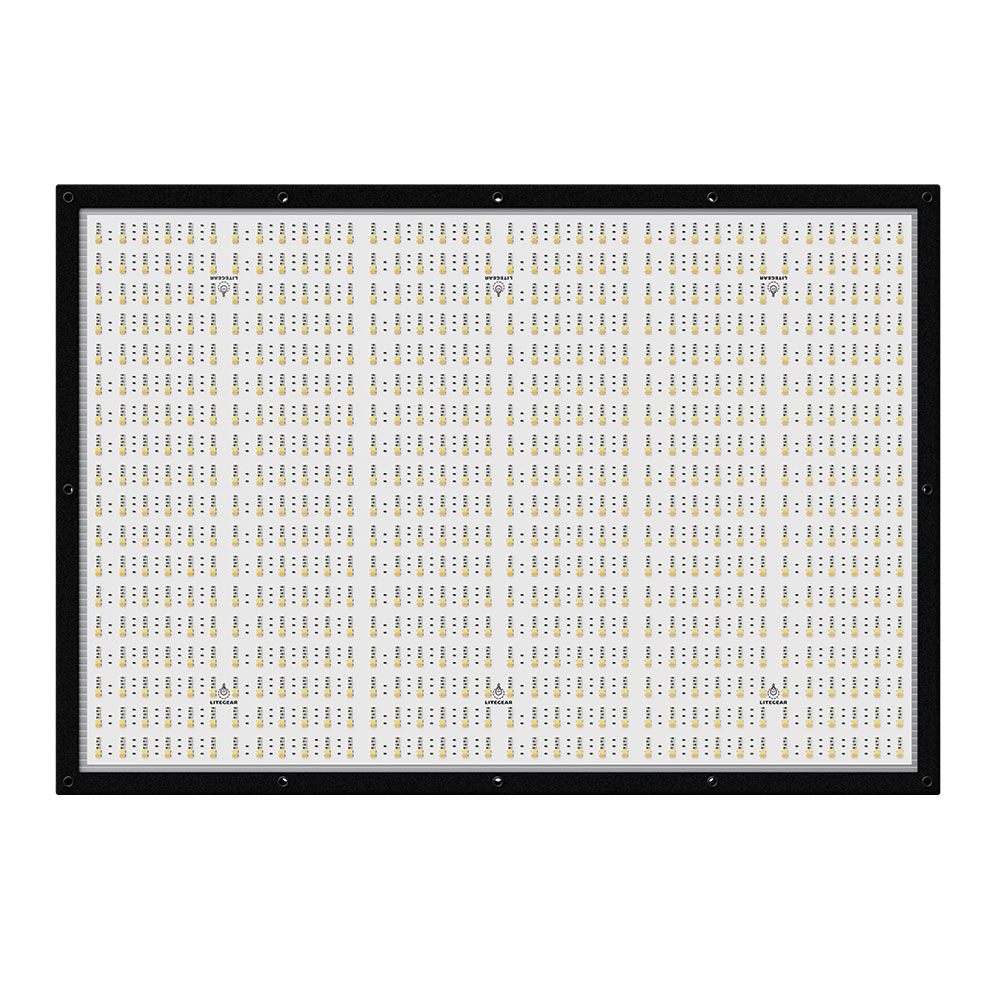

LiteMat Spectrum 3 Kit (Gen 2)

Designed to be rigid, lightweight, ultra-thin, and easy to rig, the versatile LiteMat Spectrum 3 is the go-to lighting solution for stage, studio, or location lighting setups. The evolution of the LiteMat Spectrum includes a more robust design in a feature-packed fixture that will meet your lighting needs now and into the future. Features included in the LiteMat Spectrum 3 include smoother low-end dimming, three mappable large format pixels, precision-calibrated electronics, and updateable pixel driver firmware.

• LiteMat Spectrum 3 Head (2023)
• LiteDimmer Spectrum AC/DC 200
• LiteMat 3 Full Diffuser
• LiteMat 3 Half Diffuser
• LiteMat 3 Quarter Diffuser
• LiteMat 3 PolySkirt
• PDX Cable, 25 ft.
• kMount
• LiteMat 3 KitBag

Product Name: LiteMat Spectrum 3
Item Number: LM-SPECTRUM-THREE-G2
Model: 254-1
Beam Angle: 55º HPA
Input Voltage: 48V DC
Input Current: 3.13A
Total Power: 150W Nominal
Color Temperature Range: 2,000K to 11,000K
Tint Control: Full plus and minus green adjustment
Dimming Range: 0 to 100% Continuous (When paired with a compatible LiteGear Dimmer)
Colored Light: 6-color, wide gamut hue and saturation control
Estimated LED Lifetime: 50,000 hrs
Power & Data Connector: PDX
Pixels: 3 large format pixels
IP Rating: IP20
Max Operating Temp: 122°F (50°C)
Weight: 9.4 lbs (4.3 kg)
Color Rendition:
CRI Average: >= 95
TLCI Average: >= 95
Total LED Quantity: 3888
Dimensions: Height: 21.1 in. (536 mm)
Width: 30.5 in. (775.7 mm)
Depth: 1 in. (25.4 mm)
Mounting: kMount
Certifications: ETL, CE, UKCA, FCC (certification pending)

LiteMat Spectrum 3 (2023) Data Sheet
LiteMat Spectrum 2023 Quick Start Guide
LiteMat Spectrum 2023 User Guide
LiteMat Spectrum Symbols Vectorworks 2024
LiteMat Spectrum Symbols Vectorworks 2023
