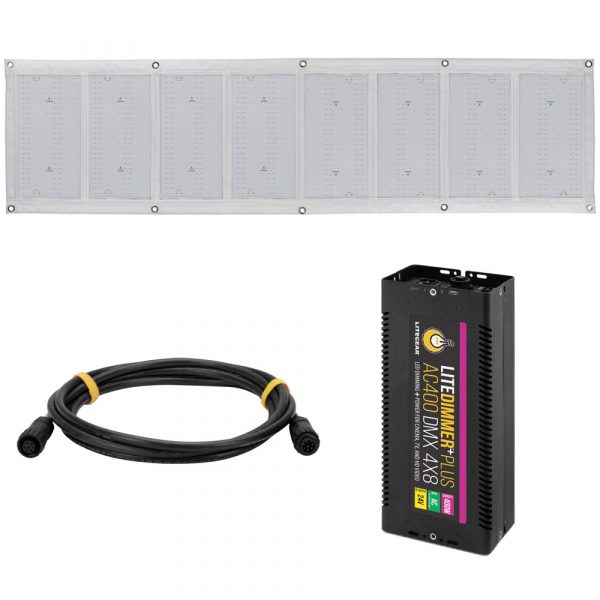

LiteTile Plus Kit, 2×8, Hybrid, Complete Kit

LiteTile Plus Kit, 2×8 is the first foldable LED lighting fixture made completely with engineered textiles. LiteTile+ Plus 8 allows the user to install thin, soft, and adjustable Kelvin light into areas previously inaccessible. Because LiteTile+ Plus folds up to 180º between each light engine, the luminaire can be shaped into numerous configurations allowing for 360º, two-sided, or irregularly shaped setups. LiteTile+ Plus 8 can be directly attached to walls or ceiling surfaces such as office drop-ceilings with just spring-clips or tape. The LiteTile+ Plus 8really shows its versatility when four units are coupled together and attached to an overhead/butterfly 8’ x 8’ frame. That is 1600 watts and more than 18400 cinema quality emitters creating ultra-soft Hybrid light output without the need for additional diffusion.

• LiteTile Plus 8 Head Unit
• LiteDimmer Plus AC 400
• PL7 Extension Cable, 12 ft

POWER RATING: 400W
INPUT VOLTAGE: 24VDC
CURRENT DRAW: 16.67A
LED QUANTITY: 4608
DIMMING RANGE: 0 to 100% continuous *When paired with a compatible LiteGear Dimmer*
MOUNTING: Velcro®-Lined Border (Front and Back) Large Eyelets for Sash Cord or Cable Ties Optional LiteBox Frame
AMBIENT TEMP. OPERATION: –10° to +50° C (14° to 122° F)
IP RATING: IP50

LiteTile Plus 8 Data Sheet
LiteMat Plus, LiteTile Plus, and Legacy Library Vectorworks 2021
